3 strings of 12V18650 lithium-battery protection board 11.1V 12.6V anti-overcharge and Over-discharge peaking at 10A over-current protection

Note:

This protection board cannot be used for iron-free polymer battery, hand electric drill battery pack, electric fish machine battery pack, electric bicycle battery pack, 2 pieces connected in series for 24V, 775(4A) above motor, 1W fisheye LED lamp, please pay attention to it for customers who purchase the above combination!.

The power range described applies to the following goods:

Vacuum cleaner massager battery pack, LED light backup power supply, 12V electronic goods, solar street light battery pack, monitoring backup power supply, and other goods.

Description Explanation:

3 strings (3 18650 batteries or polymer lithium-battery series combination)

10.8V (rated voltage of polymer battery)

11.1V (rated voltage of 18650V or 3.7V lithium-battery)

12.6V (voltage after the lithium-battery is fully charged)

Discharge 10A (refers to the large discharge current limit)

Lithium-battery protection board

Comes with: overcharge, overdischarge, overcurrent, short circuit protection

18650 lithium-battery pack!!!

Overview:
the main I/C adopts the original "Seiko" imported components. It has the protection functions of overcharge, overdischarge, overcurrent and short circuit, and is used for 3.7V lithium-batteries of various capacities and shapes. Using Japan [Seiko] protection I/C,VISHAY, AOS, IR and other high-grade MOSFET,FR-4 low temperature coefficient plate, well designed, tested. Small size, suitable for many requirements of high integration, low cost occasions, can meet various performance requirements, to ensure the reliability of the battery pack.

The properties of the lithium-battery protection board:

Model: HX-3S-01 overcharge voltage range: 4.25-4.35v ± 0.05v

Size: 50*16*1.0mm over discharge voltage range: 2.3-3.0v ± 0.05v

It is large working current: 5-8A working temperature:-40 --- 50 ℃

High current: 9-10A storage conditions:-40 -- 80 ℃

Quiescent current: less than 6uA effective life: more than 30000 hours

Internal resistance: less than 60mΩ short circuit protection: protection, delay self recovery.

Dimensions of the protection board and description of the device;

The size of the protection board is 50*16*1.0mm; The components are 443*4 of [Seiko] S-8254AA protection chip and FDS;

Note: The price of nickel tablets and auxiliary materials described below is not included in this link baby. The shipment is a single board. If you need to process the shipment, please contact customer service.

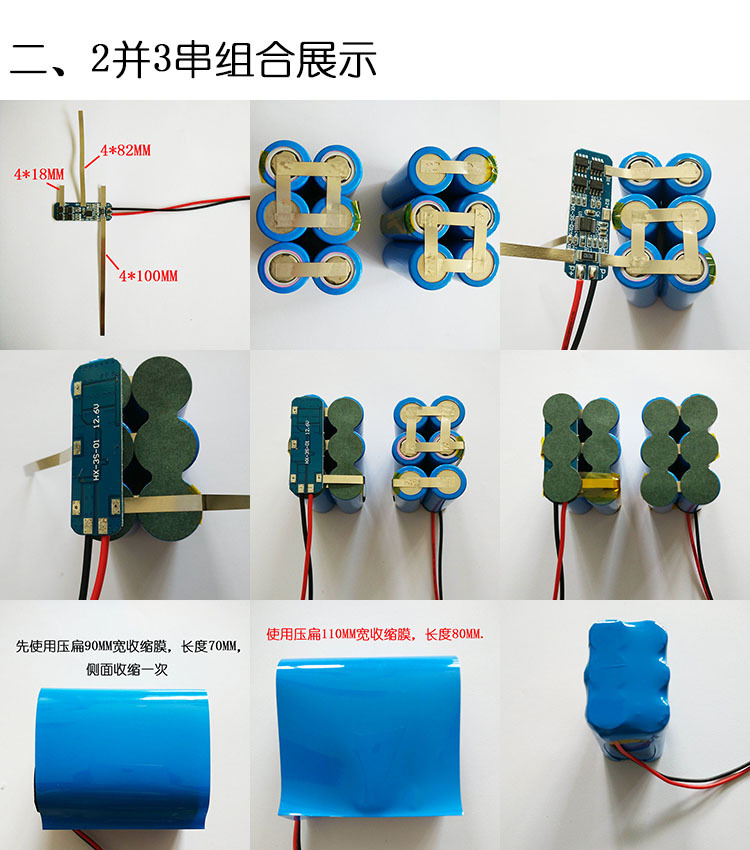

Three strings of three and more than combination method later upload!
