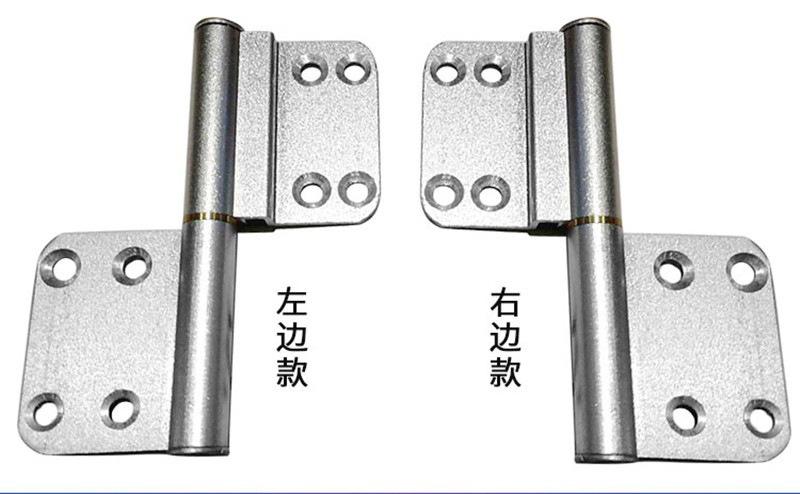

China Wholesale Aluminum alloy hinge toilet door thickened non-impact hinge removable hardware accessories sliding door hinge flat from 1688.com

Toilet Hinge Hinge Bathroom Door Toilet Aluminum Hinge Old-fashioned Non-flush Flat Take-off Aluminum Alloy Loose-leaf Space Aluminum

Model:	LM-HI2035
Material:	Aluminum
Brand:	Ronroway
Type:	Non-impact hinge
Specifications & Quality:	30/35/High Quality
Product use:	All kinds of doors and window, aluminum doors and window, etc
Direction:	Left and Right
Surface treatment:	Sand blasting
Factory place:	Foshan

Hinge (Hinge), also known as the hinge, the official name is hinge. Often composed of two-fold, it is a component that connects two parts of an object and enables it to move. Ordinary hinges are used for cabinet doors, window, doors, etc.

Hinge Type

Ordinary hinge: used for cabinet doors, window, doors, etc. Materials are iron, copper and stainless steel. The disadvantage of ordinary hinges is that they do not have the function of spring hinges. After installing the hinges, various touch beads must be installed, otherwise the wind will blow the door panel.

Pipe hinge: also called spring hinge. Mainly used for the connection of furniture door panels, it generally requires a plate thickness of 16~20mm. Material has galvanized iron, zinc alloy. The spring hinge is equipped with an adjusting screw, which can adjust the height and thickness of the board up and down, left and right. it can cooperate with the opening angle of the cabinet door according to the space. In addition to the general 90-degree angle, 127 degrees, 144 degrees, 165 degrees, etc. have corresponding hinges to match, so that various cabinet doors have corresponding extension.

Door hinge: It is divided into ordinary type and bearing type, which has been mentioned before. Bearing type from the material can be divided into copper, stainless steel. From the current consumption situation, the choice of copper bearing hinges more, because of its beautiful style, bright, moderate price, and equipped with screws.

Other hinges: glass hinges, countertop hinges, door hinges. The glass hinge is used to install the frameless glass cabinet door, and the thickness of the glass is not more than 5~6mm.

Installation points

The installation of hinges is exquisite, and the 6 main points to pay attention to are:

(1) Before installation, check whether the hinge matches the door and window frame and fan.

(2) Check whether the hinge slot matches the height, width and thickness of the hinge.

(3) Check whether the hinges and the screws and fasteners connected to them are matched.

(4) The connection mode of the hinge should match the material of the frame and the fan. For example, for the hinge used for the steel frame and the steel frame, the side connected to the steel frame is welded, and the side connected to the wooden door is fixed by wood screws.

(5) In the case of asymmetry of the two sheets of the hinge, it should be distinguished which sheet should be connected with the fan, which sheet should be connected with the door and window frame, and the side connected with the three sections of the shaft should be fixed with the frame, and the side connected with the two sections of the shaft should be fixed with the door and window.

(6) When installing, ensure that the axes of the hinges on the same fan are on the same plumb line to prevent the doors and window from warping.

Product Info
Arm type	slide-in
Base	detachable
Brand	Ronroway
Closing mode	A section of force hinge
Door closing mode	a section of force hinge
Item No.	LM-HI2035
Material	Aluminum
Model	LM-HI2035
Number	LM-HI2035
Processing customization	Yes
Style	Modern simplicity
Surface treatment	Sand blasting
Type	Hinge
Whether cross-border export exclusive source	No
Whether the general taxpayer	Can
Whether the source of cross-border export is exclusive	No

Aluminum alloy hinge toilet door thickened non-impact hinge removable hardware accessories sliding door hinge flat

$0.17
