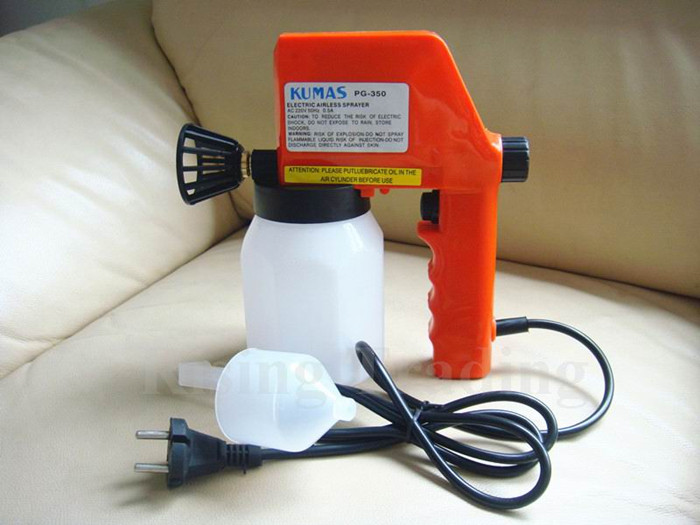

Electric spray-gun electric spray-gun household DIY electric spray-gun paint spray-gun scenting machine electric spray-gun

If used domestically, choose the European standard 220v, while the American standard is used in regions with a voltage of 110v

After each task is completed, a thinner (such as banana oil) must be added to the tank and sprayed several times to remove any remaining paint from the tank and nozzle. This way, the nozzle of the spray-gun will not get clogged the next time it is used

Main parameters:

Electric pressure: 230v             Working pressure: > = 0.8Mpa
Frequency: 50Hz                     Injection flow rate: 200ml/ min
Working current: 0.4 ~ 0.6A         Capacity: 600mL
Power rate: 75W                     Net weight: 0.7KG

Characteristic:

High production efficiency, can greatly improve the painting efficiency. Save paint, easy to operate, the use of special plastic composite material, the gun-body is super light, long running will not fatigue. Easy maintenance, specially designed parts, convenient disassembly, ordinary cleaning and maintenance is extremely simplified. Strong and useful: the use of special plastic composite materials, special leak-proof materials, long service life. Wide applicability: Suitable for most coatings, gold or water-based coatings and conductive coatings can be applied. High safety performance: the high voltage generator has automatic protection function, in the case of overcurrent, can cut off high voltage at high speed, so as to effectively protect the equipment and safe running.

Use handling:

1. Fill the liquid bottle with spray. Connect the 220V power supply, press the switch, the spray-gun starts, there is a strong vibration impact sound, a few seconds later began to spray, and turned into a low normal working sound.
2, if it does not work normally after starting, then try to adjust the knob behind, the method is: first screw the knob and then slowly retreat, to test the pressure by hand at 50cm from the nozzle, with strong numbing. (Note: After adjustment, usually do not adjust casually)
3, the effective distance of decontamination is 10-15cm between the nozzle and the object, and the handling is carried out according to the 45 degree downtilt Angle, and the spray is repeatedly sprayed until the stain is removed.

Maintenance:

1, the spray-gun sustainable running, but also need to pay attention to moderation, so as to avoid overheating damage.
2, the sound is normal but there is no spray, or the spray is weak, loose, the nozzle is blocked, unscrew the nozzle, clean up the debris, or gently twirl with a fine needle from inside to outside.
3, the injection is normal, but the pressure is insufficient or unstable, you can open the handle cover to check whether the pump's tight gong wire is loose.
4, after the completion of the work, it is necessary to empty spray for a few seconds, spray the liquid in the pump, and then inject a few drops of lubricating oil from the oil hole and then empty spray for a few seconds.
