LCD1602 character LCD input and output extension board LCD Keypad Shield

LCD1602 Character LCD Expansion Board

Overview:

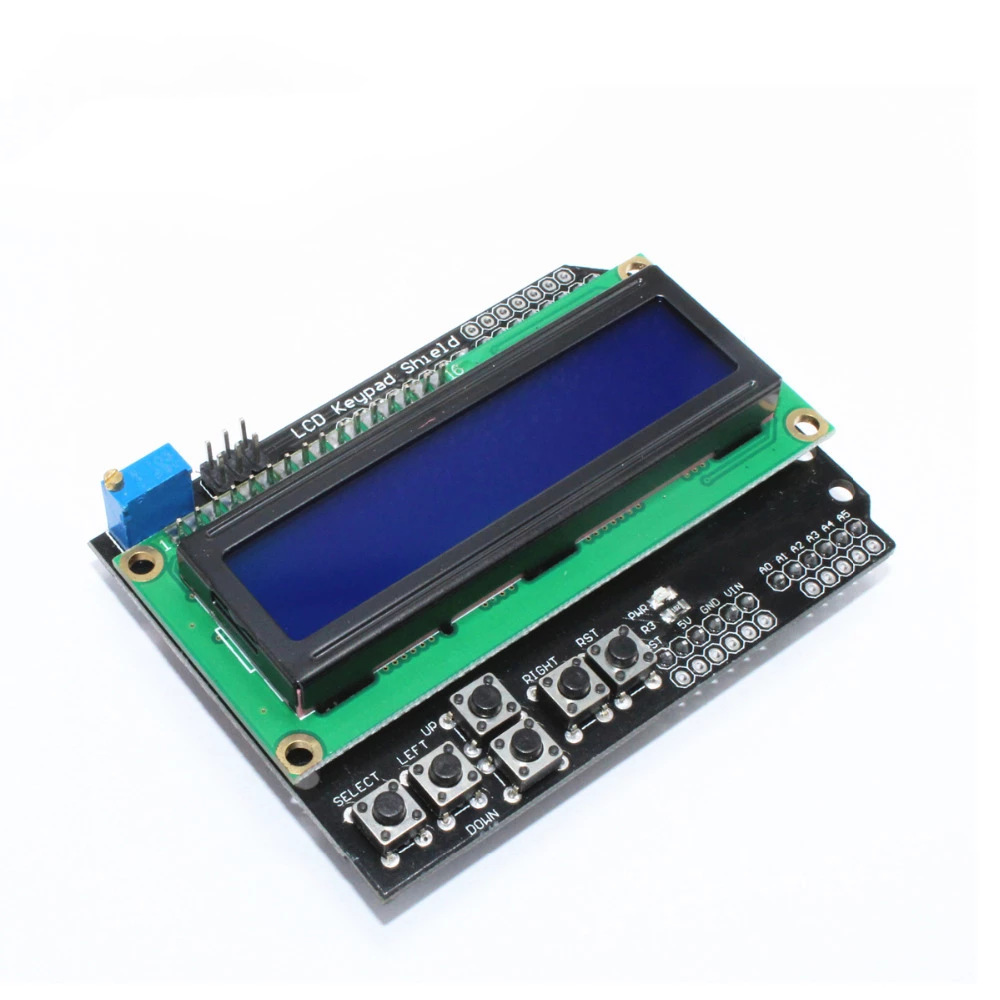

The LCD1602 character LCD expansion board comes with a high level PCB with gold-plated processing and robust materials. It comes with a brand-new 2-line, 16-character LCD module, which includes a contrast adjustment knob, a backlight selection switch, 4 directional buttons, a selection button, and a reset button. This expansion board simplifies the circuit and can be directly plugged into an Ardui no Duemilanovecontroller.

Specifications:

1. Module Dimensions: 20.5mm × 41mm
2. Module Weight: 57g

1602 LCD Overview:

Technical Parameters:

1. Display Capacity: 16 × 2 characters
2. Operating Voltage: 4.5V – 5.5V
3. Operating Current: 2.0mA (at 5.0V)
4. Optimal Operating Voltage: 5.0V
5. Character Size: 2.95mm × 4.35mm (W × H)

Pin Configuration:

1. VSS: Ground
2. VDD: 5V Power Supply
3. VL: Contrast Adjustment. Connect to power for weak contrast, to ground for strong contrast. Adjust with a 10K potentiometer to avoid "ghosting."
4. RS: Register Select. High for data register, low for instruction register.
5. R/W: Read/Write Select. High for read, low for write. Combined low RS and R/W allows writing commands or addresses. Low RS and high R/W read the busy signal. High RS and low R/W write data.
6. E: Enable. The LCD module executes commands when the E pin transitions from high to low.
7. D0 – D7: 8-bit bidirectional data lines.
8. BLA: Backlight positive
9. BLK: Backlight negative

Instruction Set:

The LCD module has 11 control instructions, detailed as follows:

Product Info
Brand	Ling Hong module
Featured service	1602 Expansion Board
Item	LH
Licensable private label	Yes
Main downstream platform	LAZADA
Main sales area	Middle East
Main Sales Region	North America
Model	1602 expansion board
Power	W
Processor Speed	S
Purpose	1602 expansion board
Supply Current	A
Supply voltage	V
Type	1602 Expansion Board
Whether cross-border export exclusive source	Yes
