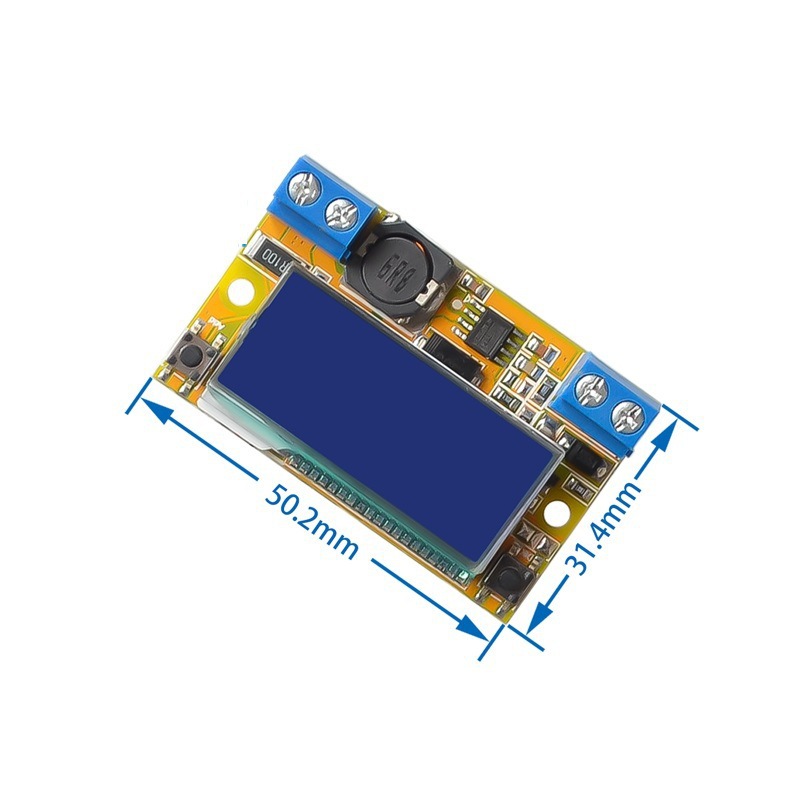

DC-DC adjustable step-down regulated module with display LCD screen with voltmeter and ammeter dual display
$0.34
- 1688 Link: View 1688 Product
- Product Code: EPCS8597
- Availability: In Stock
- 3 or more $0.34
Module performance and characteristics:
● With terminals, no soldering iron can also be convenient to use
● Input voltage: 5~23V, 23V high, it is recommended to use within 20V, input anti-connection. (The input voltage must be higher than the output voltage 1V above)
adjustable output voltage range 0V ~ 16.5V continuously adjustable, automatically save the last set voltage.
● Peak-current 3A, recommended to use within 2A. Accuracy 1%, is a small display 0.01, unit is a, more than 2A heat, please find your own way to solve the heat dissipation problem.
● High conversion efficiency, up to 95% (efficiency is related to input and output voltage, current, and differential pressure)
● Load regulation rate S(I)≤ 0.8, voltage regulation rate S(u)≤ 0.8
● Size 62mm * 44mm * 18mm
● Weight 45g
Shipment: The module is a finished product with shell parts and has been tested (not a professional enthusiast, be careful, connect the wrong line or change is not guaranteed)
| Product Info | |
| Batch number | DC-DC adjustable step-down regulated power supply module |
| Brand | Ling Hong module |
| Featured service | LCD screen with display, voltmeter and ammeter, dual display |
| Have authorized private brands | Yes |
| Licensable private label | Yes |
| Main downstream platform | LAZADA |
| Main downstream platforms | LAZADA |
| Main sales area | Middle East |
| Main Sales Region | North America |
| Major sales areas | Middle East |
| Model | Adjustable step-down regulated power supply module |
| Power | W |
| Processor Speed | S |
| Supply Current | A |
| Supply voltage | V |
| Type | Power Module |
| Whether cross-border export exclusive source | Yes |
| Whether cross-border export is exclusively available | Yes |
Tags: DCDC, adjustable, stepdown, regulated, module, display, LCD, screen, voltmeter, ammeter, dual
