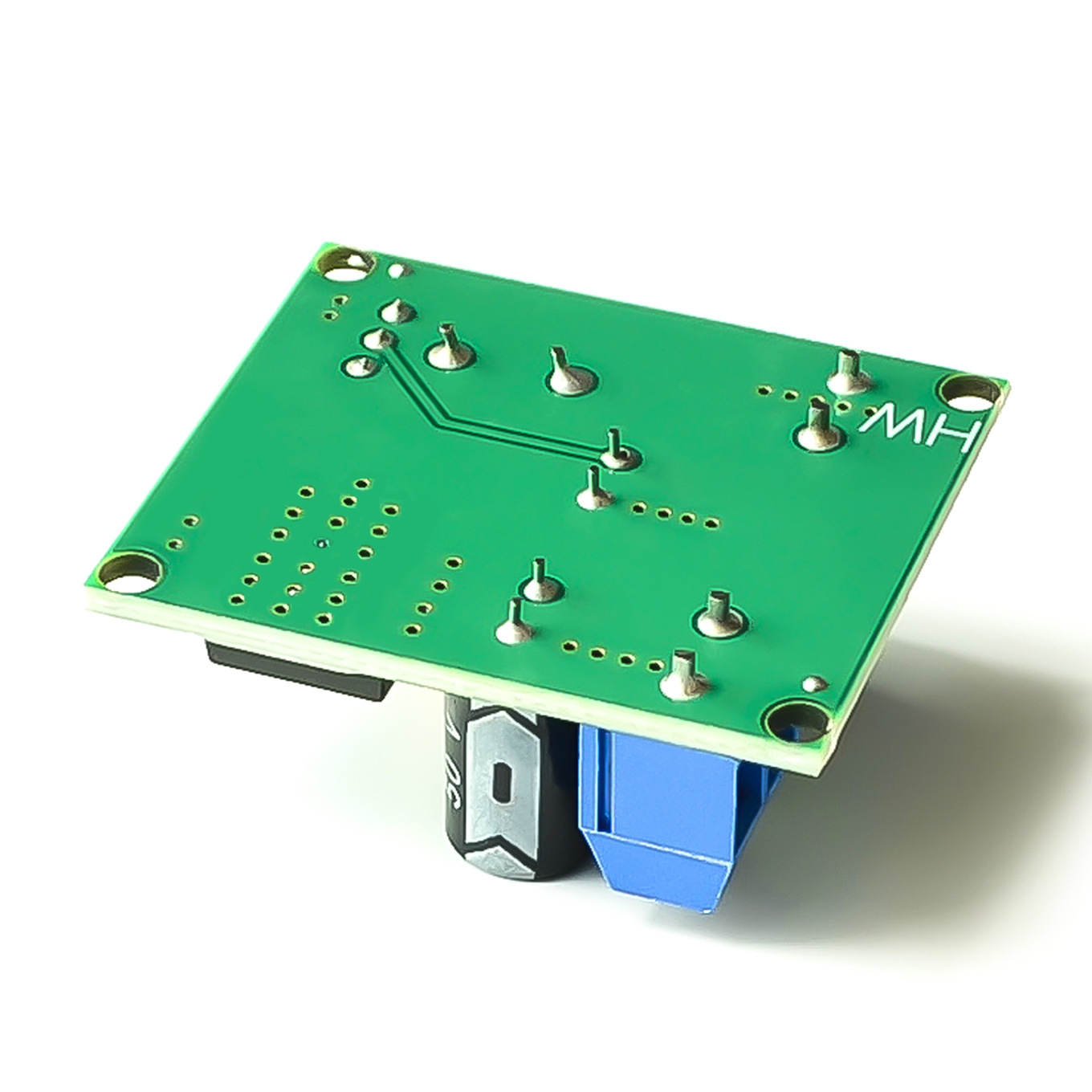

DC Adjustable Boost Module LM2587 High Power Boost Regulated Power Supply Board 3V5V12V to 19V24V30V36V
$0.80
- 1688 Link: View 1688 Product
- Product Code: EPCS8668
- Availability: In Stock
- 2 or more $0.81
- 101 or more $0.81
3.8cm * 5.2cm * 2.0cm
Weight: 32g
Quantity: LLL-DY-01
Note: When you test whether the output voltage is greater than the input voltage, please adjust the potentiometer clockwise, the output voltage will rise, please do not adjust the module counterclockwise, it will be damaged or even damaged in the case of high input voltage!
Indicators:
Input voltage range: 3.5V-30V (to ensure that the output voltage is higher than the input voltage)
Output voltage range: 4.0V-30V
The input is a large current: (according to the rated output current conditions of power conservation
Uin = * Iin * efficiency Uout * Iout)
Continuous working current: 3A (ventilation and cooling conditions are good, the ratio of output voltage to input voltage is not more than 3)
| Product Info | |
| Batch number | LM2587 |
| Brand | Ling Hong module |
| Licensable private label | Yes |
| Lot number | LM2587 |
| Main downstream platform | LAZADA |
| Main sales area | Middle East |
| Main Sales Region | North America |
| Whether cross-border export exclusive source | Yes |
| Whether the source of cross-border export is exclusive | Yes |
Tags: DC, Adjustable, Boost, Module, LM, High, Power, Regulated, Supply, Board, VVV, VVVV
