CCM5D digital PWM DC motor speed regulator 6V12V24V stepless speed control switch controller display shell
$1.90
- 1688 Link: View 1688 Product
- Product Code: EPCS8793
- Availability: In Stock
- 2 or more $1.90

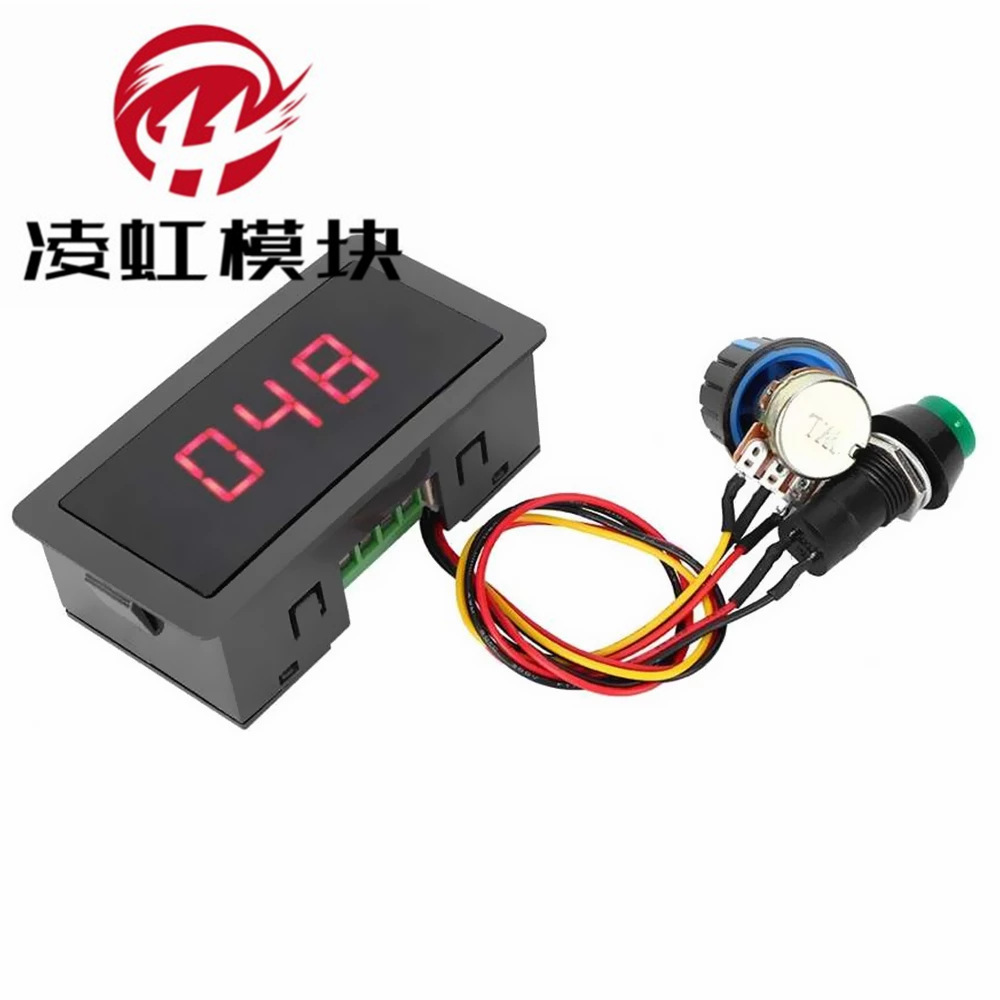

CCM5D Digital DC Motor Governor
technical indicators:
(1) Working voltage: DC6V-DC30V
(2) Control power: 0.01-150W
(3) Quiescent current: 0.02A (standby state)
(4)PWM duty cycle: 0%-
(5)PWM frequency: 13khz
(6) Rated current: (peak current 8a)
standard industrial-grade light touch knob, lightly press to enter the sleep state, and then lightly press to restart work
the knob realizes 0-adjustment, and displays 0-100 values on the digital display screen at the same time, which is convenient for customers to locate speed
Overall dimensions: 79*42
hole size: 76*39
net weight: 57g
size:<span style="font-family: >79*42*24mm
please note:
1. This governor is used DC brush motor the use.
2 is not suitable. DC brushless motor speed regulation; nor can it be used as a voltage regulator or regulator!
| Product Info | |
| Brand | Ling Hong Module |
| Featured service | PWM DC Motor Governor |
| Item | LH |
| Licensable private label | Yes |
| Main downstream platform | LAZADA |
| Main sales area | Middle East |
| Main Sales Region | North America |
| Model | CCM5D digital display |
| Power | W |
| Processor Speed | S |
| Purpose | PWM DC motor speed regulator |
| Supply Current | A |
| Supply voltage | V |
| Type | PWM DC Motor Governor |
| Use | PWM DC motor governor |
| Whether cross-border export exclusive source | Yes |
| Whether the source of cross-border export is exclusive | Yes |
