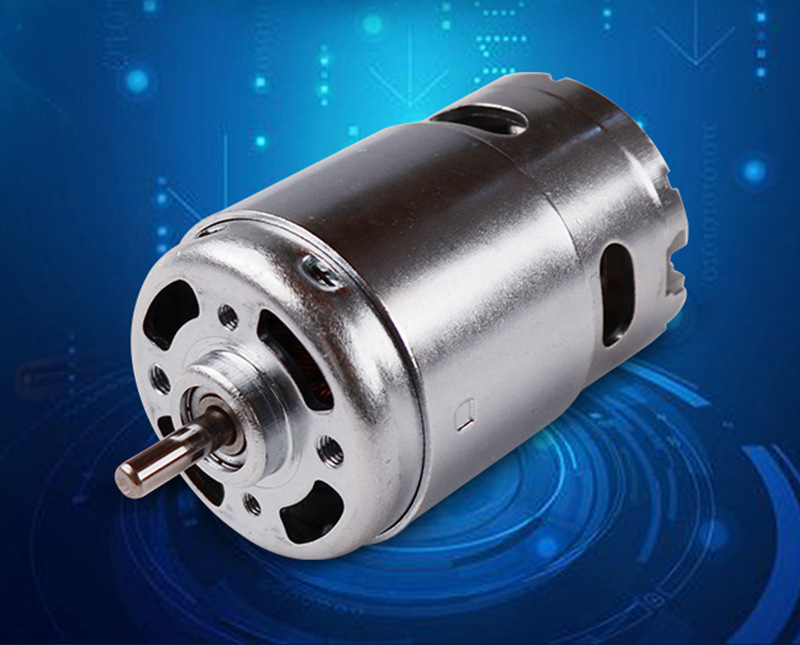

895 motor milling machine micro DC motor double ball bearing 12-24V low high speed
$4.18
- 1688 Link: View 1688 Product
- Product Code: EPCS12648
- Availability: In Stock
- 3000 or more $4.04
- 6000 or more $3.93
Are you still troubled by the insufficient power and torque of your 775 motor?
The all-new 895 motor helps you solve all the shortcomings of 775
The shaft diameter of the 895 motor is the same as that of the 775 motor, which is 5mm
Simply replace the motor and bracket to upgrade the power at a low cost Hurry up and take action!
The 895 motor can also be used as a generator, and the faster the speed, the higher the voltage and current it produces.
895 is widely used in micro cutting machines, sanding belt machines, lathes, milling machines
Platform drill, hand drill, polishing machine, Buddha bead machine
Lawn mowers, wire saws, band saws, electric grinders, carving machines, scooters, and so on, there is nothing that cannot be achieved without imagination.
895 low-speed model: maximum torque of 5.2 kg at 3000 rpm at 12V, maximum torque of 10 kg at 6000 rpm at 24V
895 high-speed model: maximum torque of 4.2 kg at 6000 rpm at 12V, maximum torque of 8 kg at 12000 rpm at 24V
The starting current should be above 10A. It is recommended to use a switch power supply or a battery power supply. It is recommended to use a 360W24V15A switch power supply and not directly use household 220V electricity
Rated voltage: DC12V-24V (voltage within 12 to 24V of the same motor can be used)
Steering: Supports forward and reverse-rotation (using forward and reverse-switches or reverse-polarity wires)
Motor step height: 4.5mm
Motor step diameter: 18mm
Motor diameter: 48mm with magnetic-ring 50MM
Shaft diameter: 5mm (exactly the same as 775 motor)
Motor tail shaft length: approximately 6mm
Installation hole spacing: approximately 29mm
Installation hole diameter: M4 screw and M5 screw
Motor weight: 495g
| Product Info | |
| 3C rated voltage range | DC below 36V |
| Brand | Zhexin |
| Current type | DC |
| Item No. | 895 motor |
| Motor Type | micro motor |
| Product Certification | . |
| Product Type | Brushed motor |
| Scope of Application | Car washing pump, sprayer, electric tools, cutting machine, belt sanding machine, lathe, milling machine, bench drill, hand drill, polishing machine, bead machine, lawn mower, wire saw |
