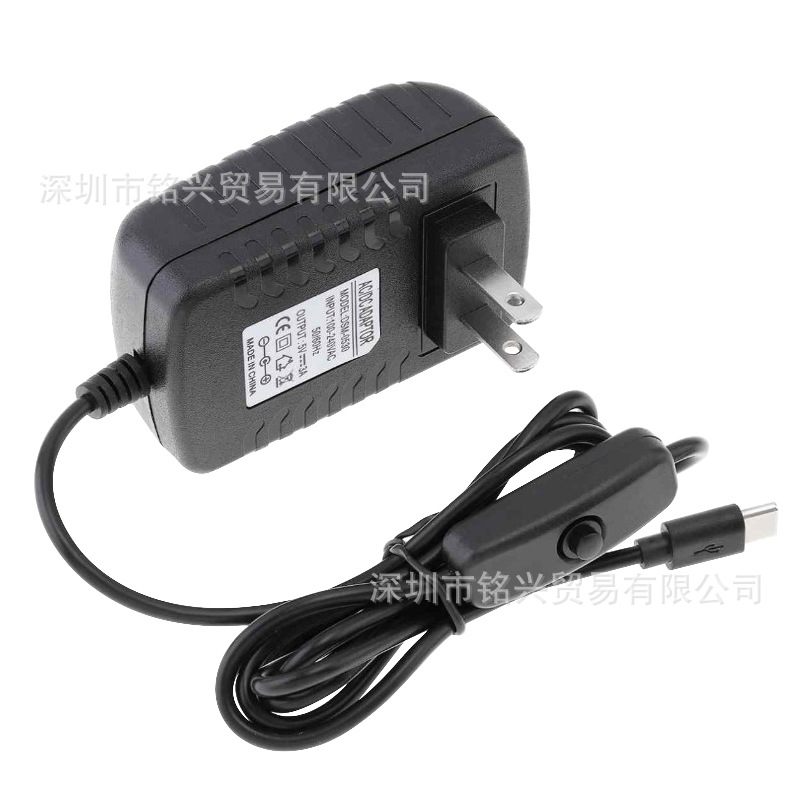

Raspberry Pi 4 generation power 5v3a type-c with switching power adapter Raspberry Pi4 4b power

Technical parameters:

appearance shape: the new launch of the new model

input voltage: AC (AC) 100V-240V 50-60Hz
output voltage: DC (direct current) 5V
rated output current: 3A
modulation mode: pulse width modulation type
productivity: 90%
temperature coefficient: ± 0.02 ℃
start-up time <1S (AC 220V input Io = 10%)
output Ripple & Noise: 100mVp-p
output voltage accuracy: 95%
voltage adjustment rate: 5%
load adjustment rate: 4%
product Solution: Transistor Solution or IC Solution
protection function: overload protection 105%~ 150% of the rated power
automatic recovery of over-voltage protection 115% to 135% of the nominal voltage plant
insulation strength: input-output AC 2000V/10 seconds
insulation resistance: input-output> 50MΩ, DC 500V
environment: working temperature 0~45 ℃,20% ~ 90% RH
storage temperature -20 ℃ ~ 85 ℃ 10% ~ 95% RH
structure: cooling form natural cooling aluminum sheet heat dissipation
wide input voltage range
high cost performance
input overvoltage, overload protection
output continuous short circuit guarantee

output DC line: 1.2 meters

output DC interface: Type-C

product packaging: white carton 200/box (or) 100/box

AC pin specification: default US regulations (European regulations, British regulations and Australian regulations are optional)
