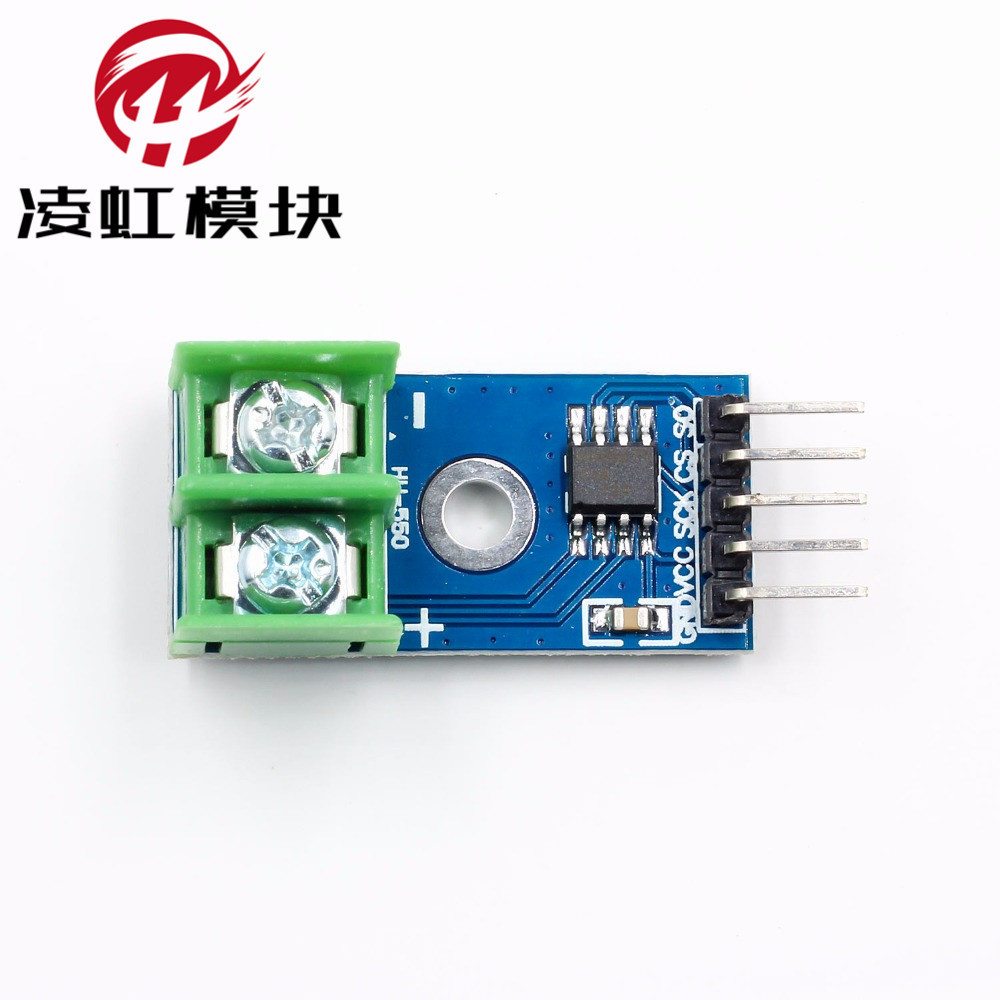

MAX6675 Thermocouple Module Temperature Sensor

Parameters:

Produced 12-bit resolution serial thermocouple analog-to-digital converter with cold junction compensation, linearity correction, and thermocouple break detection.

The main characteristics are as follows

 1. Simple SPI serial port temperature value output.

2. The temperature measurement range of -270 ℃ ~ 1768 ℃, and the temperature resolution of the converter is 0.25 ℃.

3. In-chip cold end compensation.

4. High impedance differential input.

5. Thermocouple disconnection detection.

6. Wide working voltage range of 3.0~5.5V and working current of 50mA.

8. Operating temperature range -20 ℃ ~ 85 ℃.

9.2000V ESD signal.

Module Interface: MAX6675 SPI interface, MAX31850, single bus interface

Supply voltage: 3~5V DC

Module Dimensions:15mm * 25mm
