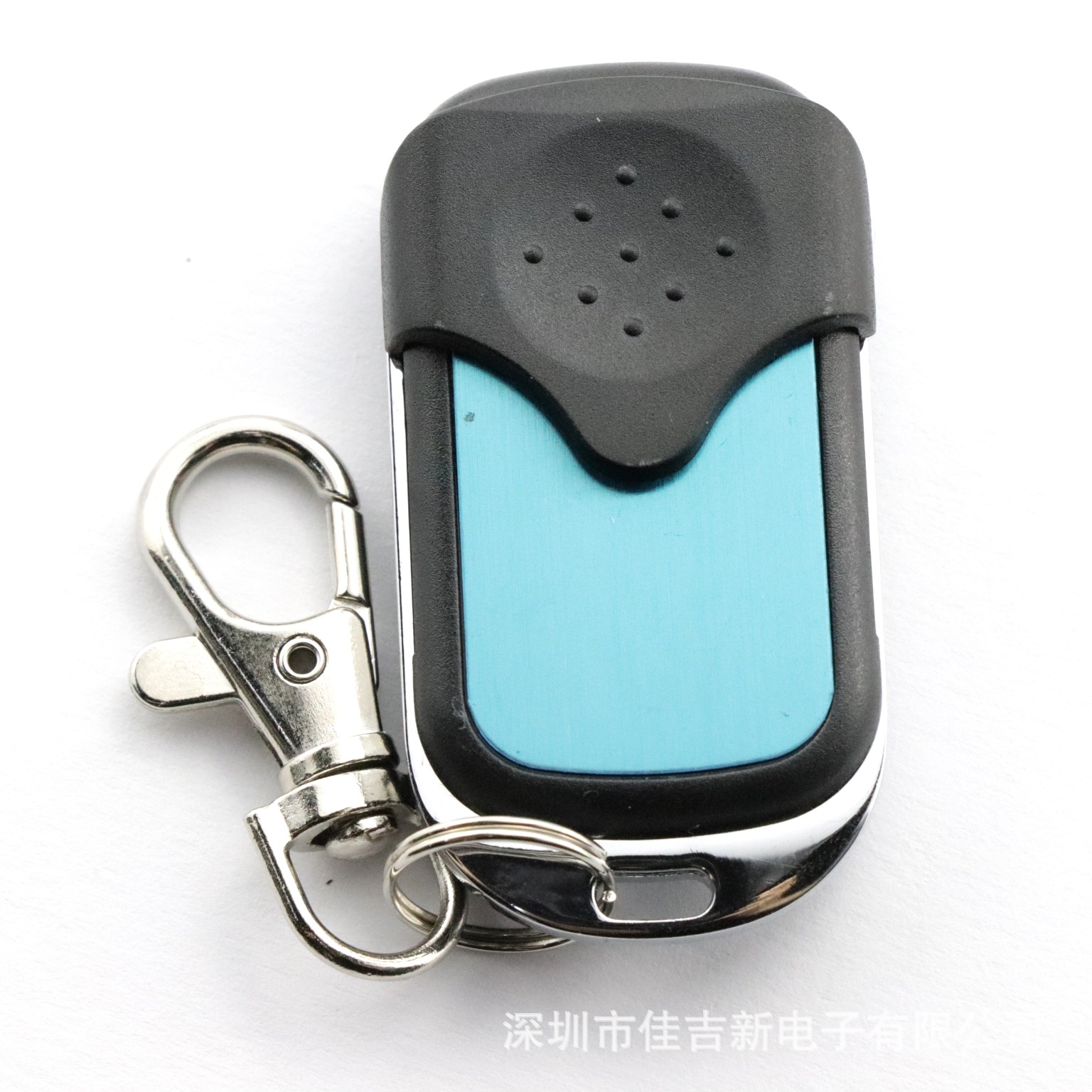

4.3392 million copy garage door copy remote control car four-button universal copy remote control
$1.24
- 1688 Link: View 1688 Product
- Product Code: EPCS13358
- Availability: In Stock
- 5 or more $1.24
- 100 or more $1.12
- 2500 or more $0.98
Self copying remote control manual
This remote control is a fixed frequency non copying machine that can copy various cars, remotely control electric doors and window, and other road resistant remote controls. It has the functions of copying and transmitting, and is suitable for copying various fixed code and learning code remote controls
1. The replicable chip types are as follows: 2260 (such as PT2260, SC2260, LX2260, HX2260, etc.); 2262 (such as PT2262, SC2262, LX2262, HS2262, HX2262, etc.), PT2264,PT2240(LX2240),CS5211,1527(EV1527,HS1527,HX1527 ),SMC918,AX5026,SMC926,AX5326-3,AX5326-4,FP527,HT600,HT680,HT6207,HT6010,HT6012,HT6013,HT6014,HT12D, HT46F49E, PIC16F630 Wait. It is also possible to copy other models of chips that are compatible with the above-mentioned chips. The prefix of chip models from different chip manufacturers may vary, as long as the numerical part of the chip model is the same.
Remote control parameters:
1. Working voltage: DC12V
2. Working current: ≤ 8MA
3. Operating frequency: 315MHz/433.92MHz/other
4. Modulation method: ASK (amplitude modulation)
5. Transmission power: ≤ 10MW
6. Transmission distance: 50-100 meters (open space)
7. Encoding type: Copy (copy, self copy, self-learning type).
8. Working temperature:- 20℃~+60℃
usage method:
1. Clear the existing codes in the remote control
Simultaneously press and hold the top A key and the top B key, make sure the LED flashes briefly and then goes out without letting go. After 2 seconds, the LED light starts flashing, indicating that the code has been cleared.
2. Copy: Hold the original remote control in your left hand and our copy remote control in your right hand, with the two remote controls as close as possible. Press the first button of both remote controls (your original remote control and our copy remote control) at the same time. After about 2 seconds, the LED light will flash rapidly twice - then flash three times after 1 second - and then the indicator light will remain on for another 1 second. Release the button and press the key after learning successfully, and the light will remain on, indicating that the code of the first button of the original remote control has been copied into our copy remote control. The same method involves sequentially copying the second key, the third key, and so on, similar to pushing. If the copying is successful, the remote control function after copying will be the same as the matched remote control button function.
3. Recovery: When you accidentally clear the code of the remote control, you can press the bottom two keys of the remote control at the same time, and the LED light will flash quickly. After releasing it, press any key again, and the light will stay on, indicating that the code of the remote control has been restored. Before using our remote control for copying, please make sure to clear the existing codes on the remote control.
4. The following is a method to test whether the existing codes on the remote control have been successfully cleared: When you end the code clearing action, you can press any key on the remote control. If the LED is not on at this time, it means that the code has been completely cleared. If the LED is constantly on, it means that the code still exists.
matters needing attention:
1. The necessary conditions for selecting a remote control for copying: the original remote control has normal functions, compatible chips, and correct frequency.
2. Only remote controllers with fixed code and learning code chips can be copied (see the second paragraph of the instructions for chip models).
3. Bidirectional remote control, rolling code remote control part-IC, program encryption remote control cannot be copied.
Before copying the remote control, please ensure that the existing code on the remote control has been cleared. Otherwise, copying cannot be performed.
This remote control comes in both tear off and non tear off options, depending on your needs. If there are no notes or communication with customer service in the following order, the default option is to send the non tear off option. Please refer to the following pictures for the difference between tear off and non tear off options:
| Product Info | |
| Brand | JJXDZ |
| Dimensions | 54.5*29*13.6 |
| Import or not | No |
| Installation method | Copy |
| Item No. | 601 |
| Main downstream platforms | LAZADA |
| Major sales areas | Middle East |
| Model | JJX601 |
| Order number | JJX601 |
| Origin | Shenzhen |
| Rated current | 15 |
| Rated voltage | 12 |
| Weight | 30 |
| Whether cross-border export is exclusively available | Yes |
