Oil pump 12V/24v DC small submersible pump oil pump oil pump pump 51mm

Technical parameters voltage: 12V/24V (DC)5.1cm large

Power: 12V 6.4A / 24v 3.5A Wire length: 3m

Flow: 30L/min Head: 3m

Outlet diameter: 1.9cm Speed: 8500r/min:

Product Description:

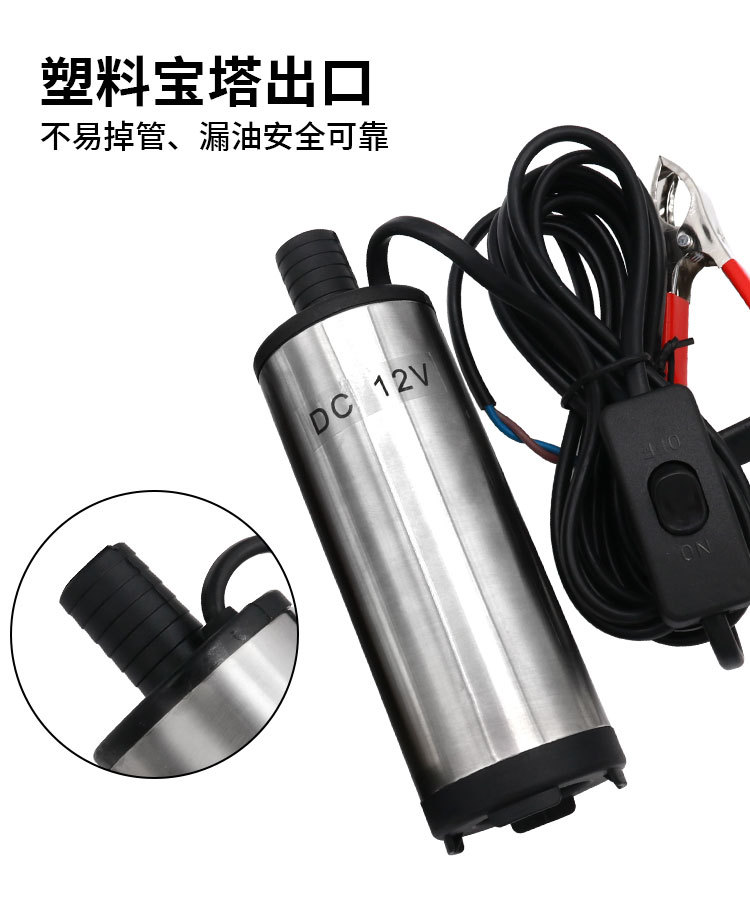

The 12V portable submersible fuel pump has stable performance. Fully sealed device, insulated state. This product is small in size. Light weight, easy to install and carry. The wire is 3 meters long, the diameter of the pump port is 19mm, and the pipe is self-matched.

It is suitable for harvesters, large-scale agricultural machinery, construction machinery, large-wheel towing and other vehicles that are inconvenient for field operating and equipment and machinery that cannot reach the gas station to refuel.

1. The oil well pump adopts DC12V DC motor, with low noise and fast speed.

2. The oil well pump has good sealing performance and adopts multi-channel sealing to ensure no leakage and prolong its service life.

3. The pump adopts stainless steel shell, which increases the thickness of the shell, makes the shell more solid, not easy to deform, and can prevent the shell from rusting and rotting.

4. The pump at the bottom of the filter with a stainless steel filter. The bottom filter is equipped with a threaded interface for easy disassembly, maintenance and replacement. Can achieve the purpose of repeated use.

5 The power line of the oil well pump is provided with a midway switch for convenient operating.

6. The oil output of this oil well pump is 30L/min.

7. After the oil well pump is used, the oil well pump should be taken out of the oil (or water) in time.

8. When the oil pump is pumping oil, the self-provided oil outlet hose should be connected first, and then the whole oil pump should be put into clean oil (or water).

9. The oil outlet hose shall be provided by itself.

Note:
