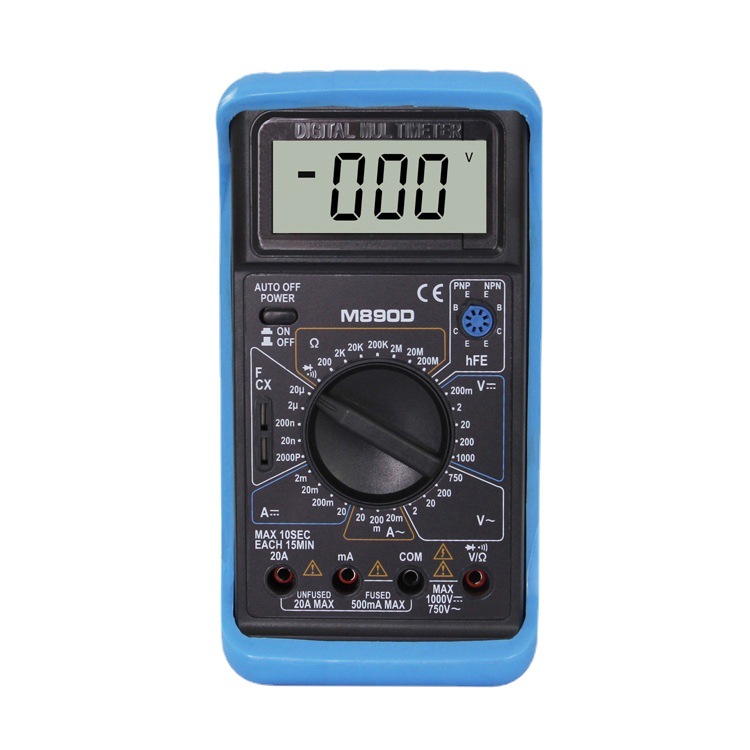

Multi purpose meter M890D, capacitance measurement, automatic shutdown, fully heat-resistant
$3.19
- 1688 Link: View 1688 Product
- Product Code: EPCS8030
- Availability: In Stock
- 100 or more $3.19
- 1000 or more $2.96
- 2000 or more $2.78
Advantages of the product: The large screen is easy to read, measurement values are displayed with unit-symbols for more intuitive display, fully protected and heat-resistant design, safe and reliable
Product Technical Features:
DC voltage: 200m-2-20-200-1000V ± 0.5%
AC voltage: 2-20-200-750V ± 1.0%
DC current: 2m-20m-200m-20A ± 1.8%
AC current: 20m-200m-20A ± 2.0%
Resistance: 200-2K-20K-200K-2M-20M-200M Ω± 1.0%
Capacitor: 2000p-20n-200n-2u-20uF ± 4.0%
General infomation of the product:
LCD display size: 63x27mm
LCD maximum display value: 1999
Low voltage-symbol display: Yes
Overload protection: available
Diode detection: Yes, displays approximate voltage drop
On/off detection and buzzer function: Yes
Transistor detection: Yes
Automatic shutdown: Yes
Power supply: 6F22 type 9V battery
Product size: 170x87x35mm
Product weight: approximately 211g
Standard configuration: bare meter (with battery inside), probe, instruction manual, certificate of conformity (warranty card)
Packaging description:
Packaging method: Color box
Packing quantity: 40 units
Outer box size: 50 * 39 * 27.5cm
Gross/Net Weight: 13/12kg
| Product Info | |
| 品牌 | WHDZ |
| 型号 | M890D |
| 安全等级 | CAT II |
| 是否进口 | 否 |
| 标准附件 | 裸表(内有电池),表笔,说明书,合格证(保修卡) |
| 用途 | 专业用 |
| 认证及标准 | ce |
